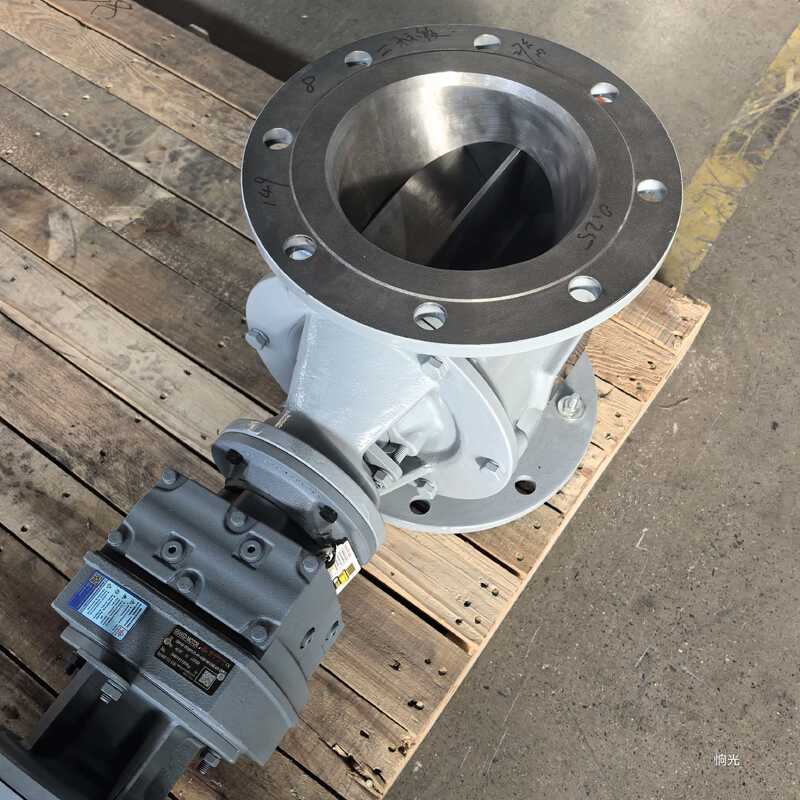

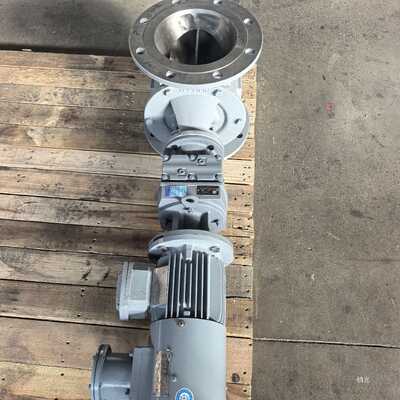

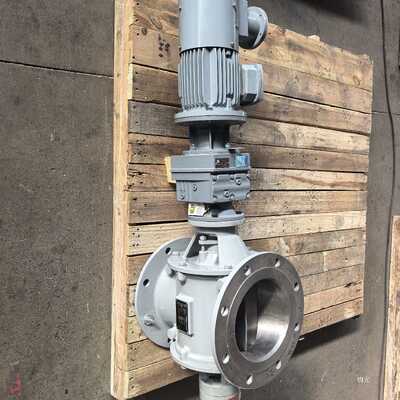

Cast iron material packing sealed air lock rotary valve feeder

Large Image : Cast iron material packing sealed air lock rotary valve feeder

Product Details:

Place of Origin:	China
Brand Name:	TECLION
Certification:	CE,ATEX
Model Number:	RDL200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Chat Now
Packaging Details:	Plywood case
Delivery Time:	30 workking days
Payment Terms:	T/T
Supply Ability:	One set per 30 working days

Contact Now

Detailed Product Description

Valve Name:	Rotary Airlock Feeder Valve	Valve Size:	DN200
Valve Body:	Cast Iron	Valve Rotor:	NM500
Sealing Type:	Packing	Driving Form:	Direct Or Chain
Highlight:	cast iron rotary valve feeder , sealed air lock rotary valve , packing rotary valve feeder

Cast Iron Material Packing Sealed Air Lock Rotary Valve Feeder

This robust cast iron rotary valve is engineered for reliable control of dry bulk materials or gases in demanding industrial applications. Featuring an advanced packing seal arrangement, it delivers exceptional sealing performance and operational benefits.

Key Features & Benefits

Superior Sealing Integrity: Multiple rings of durable, flexible packing material create a robust, multi-point barrier against leakage
Extended Service Life: Packing seal design allows for wear compensation over time without requiring immediate disassembly
Reduced Downtime: Adjustable gland follower enables maintenance without full disassembly, significantly extending maintenance intervals
Operational Resilience: Flexible packing conforms to shaft movement, maintaining effective seal under vibration or thermal expansion
Cost-Effective Solution: Combines proven durability with in-service adjustability for long-term reliability

The packing seal, typically composed of graphite-impregnated braided packing compressed within a stuffing box, offers excellent resilience to shaft eccentricity and minor misalignments. This design maintains effective sealing where more rigid methods might fail, ensuring greater operational reliability in challenging environments.

This cast iron rotary valve delivers a reliable, maintainable, and adaptable sealing solution that ensures process containment and valve longevity in tough working conditions.
