Dual channel casting aluminum diverter valve for pneumatic conveying

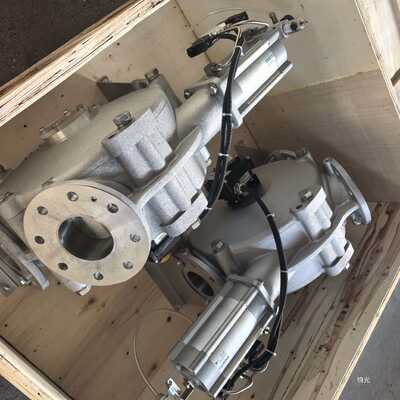

Large Image : Dual channel casting aluminum diverter valve for pneumatic conveying

Product Details:

Place of Origin:	China
Brand Name:	TECLION
Certification:	CE
Model Number:	DZ100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Chat Now
Packaging Details:	Plywood case
Delivery Time:	30 workking days
Payment Terms:	T/T
Supply Ability:	One set per 30 working days

Contact Now

Detailed Product Description

Material:	Cast Aluminum	Channel:	Lining The 304 Stainless Steel
Size:	DN100	Design Pressure:	5 Barg
Sealing:	FDA Silicone Ring	Driving:	Pneumatic Actuator
Highlight:	dual channel pneumatic diverter valve , aluminum diverter valve for conveying , pneumatic conveying diverter valve with warranty

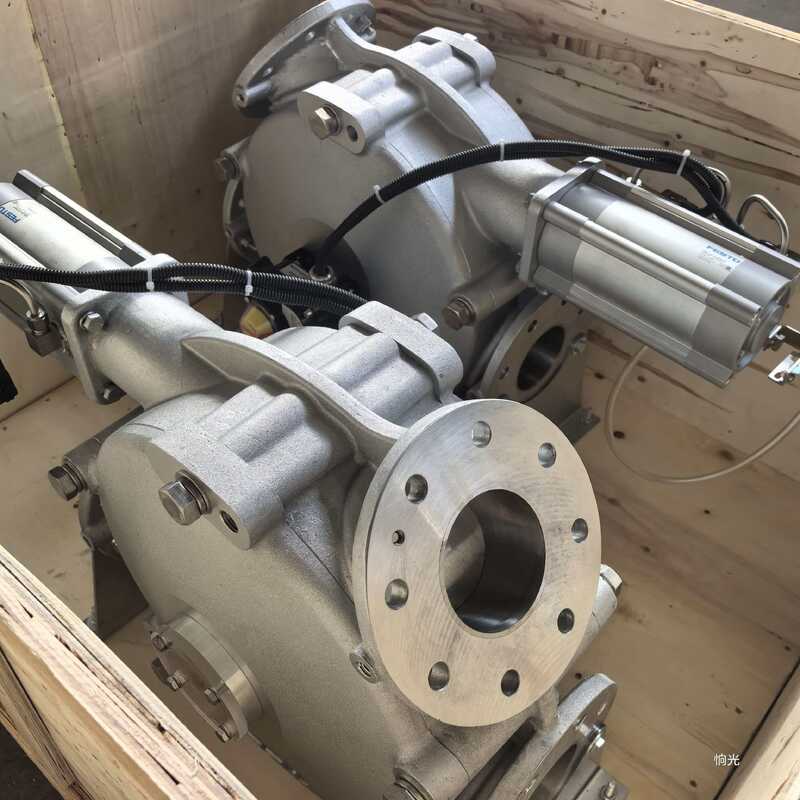

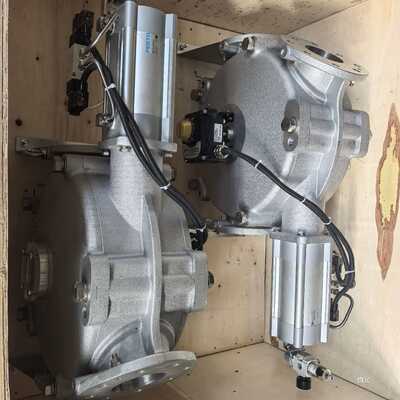

Dual Channel Casting Aluminum Diverter Valve for Pneumatic Conveying

Product Overview

This dual channel casting aluminum diverter valve is engineered for pneumatic conveying systems, offering superior performance and reliability in material handling applications.

Key Features

Lightweight Construction: Valve body made from cast aluminum, providing significant weight reduction compared to stainless steel alternatives
Dual Channel Design: Full bore structure with no dead corners, making it ideal for food-grade materials
Enhanced Durability: Stainless steel liner embedded in channels for superior wear resistance and smooth material flow
Food-Grade Sealing: FDA-certified silicone sealing rings ensure compliance with food safety standards
High Pressure Rating: Designed for 5 barg pressure, suitable for all positions in dense phase transmission pipelines
Compatible Replacement: Direct replacement for Coperion's WZK series and DMN's PTD directional valves
