Pneumatic Dilute Phase Conveying 10 T/ h PP Plastic Particle Rotary Airlock Valve

Large Image : Pneumatic Dilute Phase Conveying 10 T/ h PP Plastic Particle Rotary Airlock Valve

Product Details:

Place of Origin:	China
Brand Name:	TECLION
Certification:	ATEX,CE,EAC
Model Number:	RGM250

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Chat Now
Packaging Details:	Plywood case
Delivery Time:	30 workking days
Payment Terms:	T/T
Supply Ability:	One set per 30 working days

Contact Now

Detailed Product Description

Product Type:	Granular Rotary Airlock Valve	Housing Material:	304ss Casting
Rotor Material:	304 Ss	Rotor Volume:	20L
Flange:	PN10	Driving:	Chain Type
Material Crushing Rate:	Low	Structure:	Anti Jamming

Pneumatic Dilute Phase Conveying 10 T/ h PP Plastic Particle Rotary Airlock Valve

Rotary Airlock Valve Description:

As shown in the picture, this rotary airlock valve has an anti jamming structure design, which is specifically designed for conveying granular materials. This rotary valve not only prevents jamming, but also can be started with material. Compared to our other competitors' rotary airlock valves, it has a lower material crushing rate.

This DN250 rotary airlock valve has a rotor volume of 20L, high filling rate, and high conveying capacity, suitable for pneumatic conveying conditions with a pressure difference of no more than 1.5 barg. If the customer is using positive pressure dense phase conveying, we can upgrade this rotary valve to a high-pressure rotary valve that can operate under a pressure difference of no more than 3.5 barg

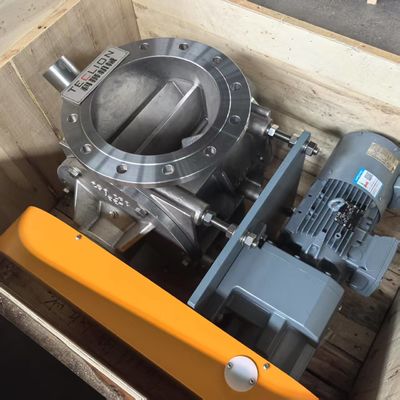

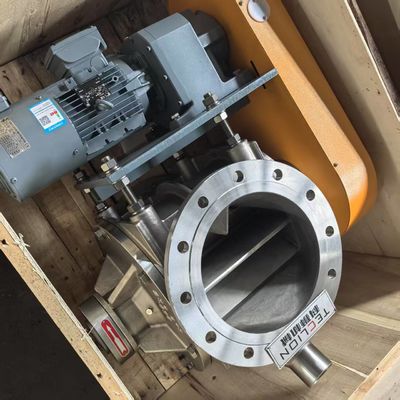

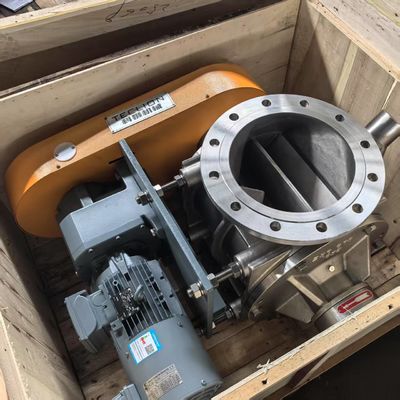

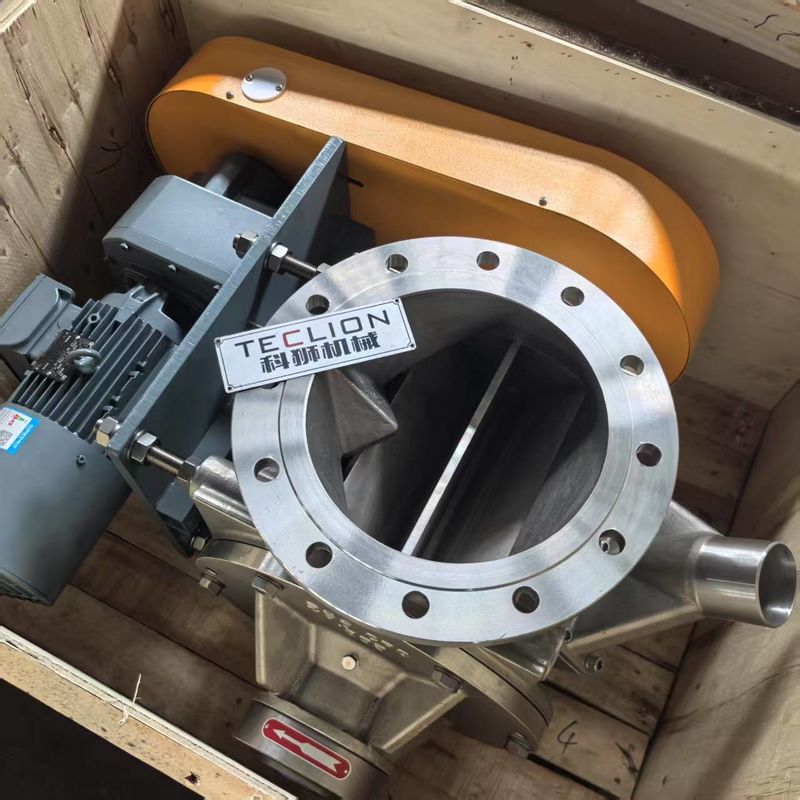

Rotary Airlock Valve Pictures:
