Unlocking Efficient Conveying Stainless Steel Line Changing Valve Suitable For Dilute Phase Pneumatic And Gravity Unloading

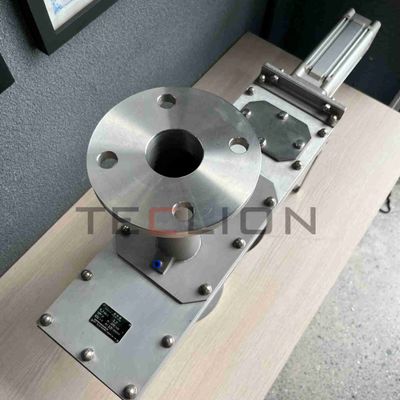

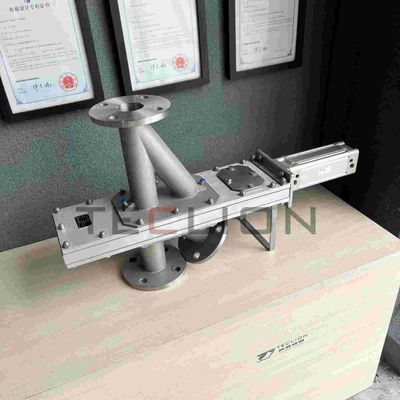

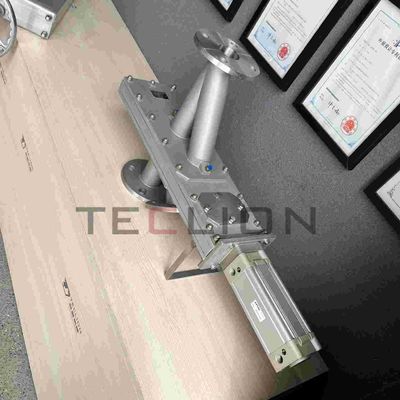

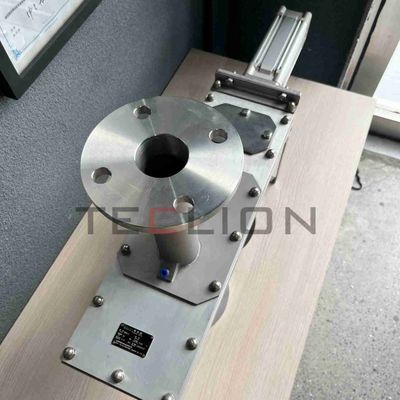

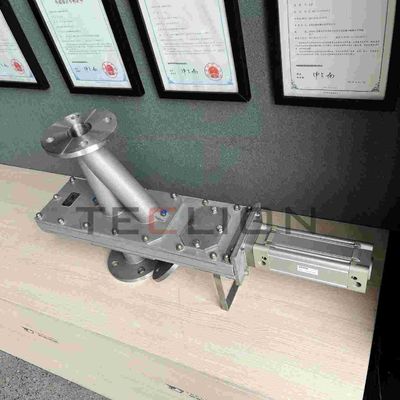

Large Image : Unlocking Efficient Conveying Stainless Steel Line Changing Valve Suitable For Dilute Phase Pneumatic And Gravity Unloading

Product Details:

Place of Origin:	China,Anhui
Brand Name:	TECLION
Certification:	CC CE
Model Number:	DW50-S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get the Best Price
Packaging Details:	Professional export fumigation free wooden crate
Delivery Time:	35 working days
Payment Terms:	T/T
Supply Ability:	Usually every one sets for 35- 40 days

Contact Now

Detailed Product Description

Material:	Stainless Steel	Temperature:	-20℃+120℃
Width:	71	Height:	41
Industry:	Plastic Chemistry Food Minerals	Applicable Area:	Explosion Proof Area
Highlight:	Gravity Unloading Line Changing Valve , Dilute Phase Line Changing Valve , Stainless Steel Line Changing Valve

Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading

Product Description:

The orifice plate directional valve is designed with a full bore, and there are no external moving parts that can cause danger. The import and export of materials can be interchanged, reversed or converged. Optional options include 2, 3, and 4 discharge ports. Optional inflatable sealing ring.

Product Features:

1) Polymer interlayer compensation

2) Can be installed horizontally or vertically

3) Can switch between carrying materials

4) Suitable for dilute phase pneumatic conveying or gravity unloading

5) Optional symmetrical structure

Product Parameters:

No	Item	Note
1	Valve type	Orifice type directional valve
2	Size	DN50
3	height	41cm
4	Temperature usage ℃	-20-120℃
6	weight	61kg
7	structure	Optional symmetrical structure
8	others	Optional ingredient compartment top breathing function
