Innovative design! Swing plate gravity distribution valve - more precise powder conveying

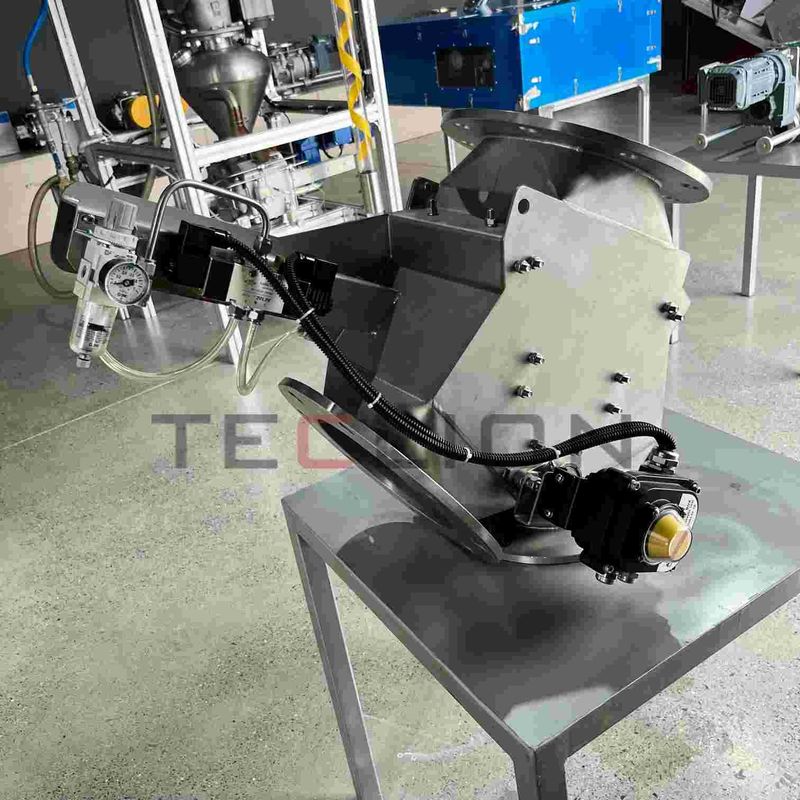

Large Image : Innovative design! Swing plate gravity distribution valve - more precise powder conveying

Product Details:

Place of Origin:	China,Anhui
Brand Name:	TECLION
Certification:	CE EAC ISO
Model Number:	DFV200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get the Best Price
Packaging Details:	Professional export fumigation free wooden crate
Delivery Time:	35 working days
Payment Terms:	T/T
Supply Ability:	Usually every one sets for 35- 40 days

Contact Now

Detailed Product Description

Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Farms, Other	Cylinder Form:	Double Action
Protection Grade:	IP55	Position Switch Form:	SPDT
Flange Standard:	PN10	Color:	Original Color
Working Temperature:	120℃
Highlight:	Innovative Design Swing Plate Valve , Gravity Distribution Swing Plate Valve , Swing plate Gravity Distribution Valve

Innovative design! Swing plate gravity distribution valve - more precise powder conveying

Product Description:

This directional valve is suitable for the working condition of gravity feeding under normal pressure, can switch with material, has no dead angle design, and is suitable for explosion-proof areas.

Product Features:

1)Precision cast shell

2)Smooth channel without undulations or dead corners

3)High load, rigid foot

4)Can be used at any position in dilute phase transportation pipelines

5)Flow direction indication is concise and clear

6)Ten thousand action tests, structurally reliable

Product Parameters:

No	Item	Note
1	Valve type	DFV200R
2	Size	DN100-300
3	pressure (Mpa)	ATM
4	Allow temperature usage	120℃
5	Materials of constructions	stainless steel or carbon steel
6	volume	4-12L
7	Applicable area	in Ex-zone

Innovative design! Swing plate gravity distribution valve - more precise powder conveying 0
