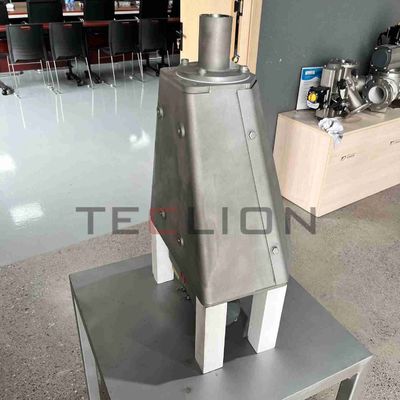

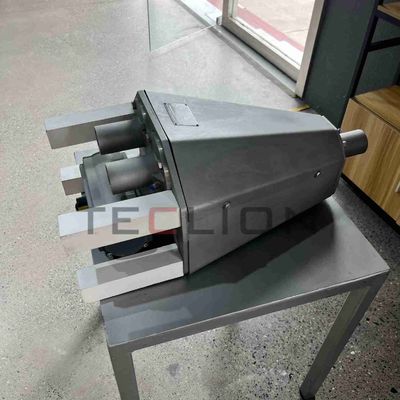

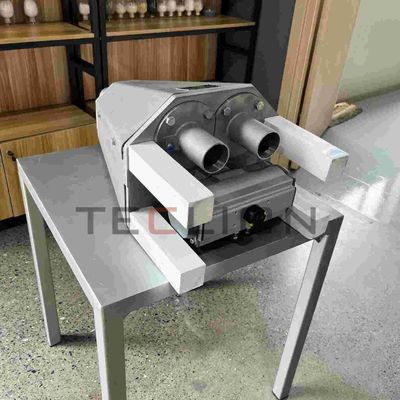

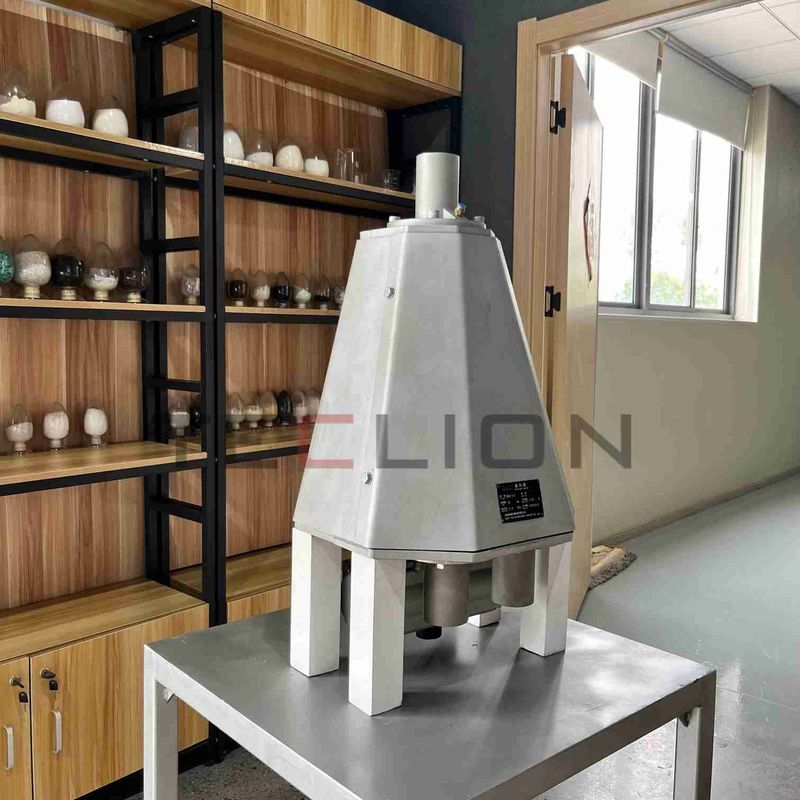

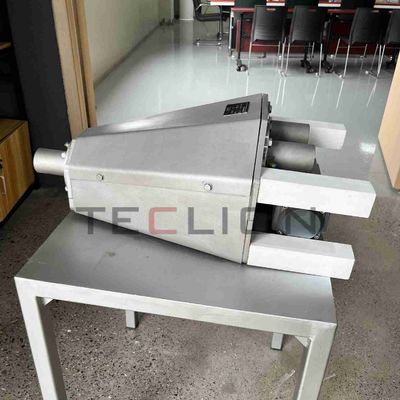

Stainless steel material one in multiple out directional valve

Stainless steel material one in multiple out directional valve
Stainless steel material one in multiple out directional valve Stainless steel material one in multiple out directional valve Stainless steel material one in multiple out directional valve Stainless steel material one in multiple out directional valve Stainless steel material one in multiple out directional valve

Large Image :  Stainless steel material one in multiple out directional valve

Product Details:
Place of Origin: China,Anhui
Brand Name: TECLION
Certification: CC CE
Model Number: DM50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get the Best Price
Packaging Details: Professional export fumigation free wooden crate
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: Usually every one sets for 35- 40 days
Contact Now
Detailed Product Description
Material: Stainless Steel Color: Original Color
Aplication: Lithium Ion Chemical Plastics Minerals Suitable For Pressure: 1.0Barg
Height: 74cm Size: DN40-DN150
Motor Brand: Customizable Gearbox Brand: Customizable
Highlight:

Stainless steel directional valve

,

Multiple out directional valve

Stainless steel material one in multiple out directional valve



Product Description:

Multi directional valve suitable for powder or particle, equipped with inflatable sealing ring, made of stainless steel material. One in, multiple out, up to 14 discharge ports.

Product Features:

1) Inflatable sealing ring

2) Temperature:-20-120℃

3) Body material: stainless steel

4) One in, multiple out, up to 14 discharge ports

5) Suitable for explosion-proof areas

6) Suitable for pressure: 1.0 barg

Product Parameters:

No Item Note
1 Valve type Multi way directional valve
2 Size DN40-DN150
3 Body Material stainless steel
4 Temperature usage ℃ -20~120
5 region Explosion proof area
6 pressure 1.0barg


 Stainless steel material one in multiple out directional valve 0Stainless steel material one in multiple out directional valve 1Stainless steel material one in multiple out directional valve 2Stainless steel material one in multiple out directional valve 3Stainless steel material one in multiple out directional valve 4
