Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading

Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading
Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading

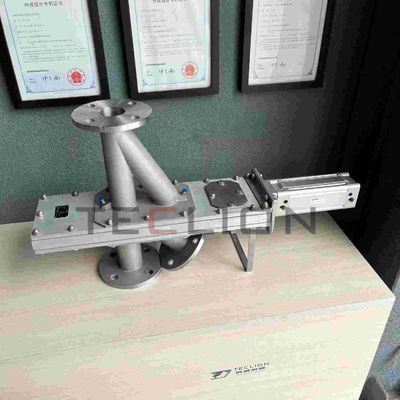

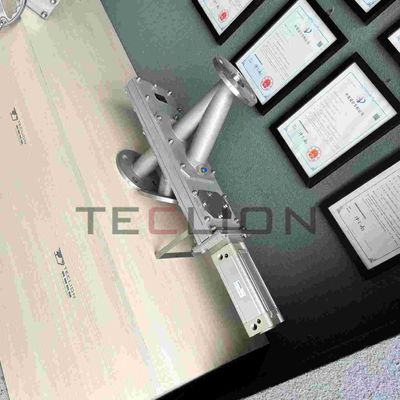

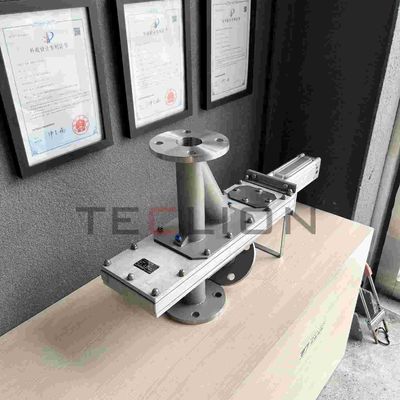

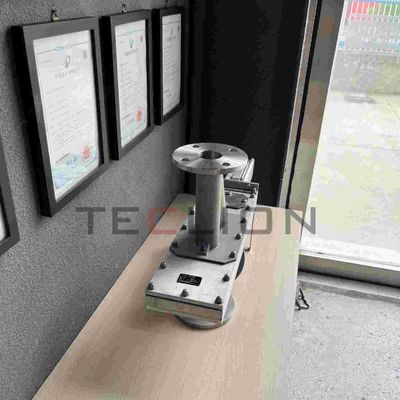

Large Image :  Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading

Product Details:
Place of Origin: China,Anhui
Brand Name: TECLION
Certification: CC CE
Model Number: DW50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get the Best Price
Packaging Details: Professional export fumigation free wooden crate
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: Usually every one sets for 35- 40 days
Contact Now
Detailed Product Description
Material: Stainless Steel Temperature: -20℃+120℃
Width: 71 Height: 41
Industry: Plastic Chemistry Food Minerals Applicable Area: Explosion Proof Area
Others: Can Switch Between Carrying Materials
Highlight:

Gravity Unloading Line Changing Valve

,

Stainless Steel Line Changing Valve

,

Dilute Phase Line Changing Valve

Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading



Product Description:

The orifice plate directional valve is designed with a full bore, and there are no external moving parts that can cause danger. The import and export of materials can be interchanged, reversed or converged. Optional options include 2, 3, and 4 discharge ports. Optional inflatable sealing ring.



Product Features:

1) Polymer interlayer compensation

2) Can be installed horizontally or vertically

3) Can switch between carrying materials

4) Suitable for dilute phase pneumatic conveying or gravity unloading

5) Optional symmetrical structure



Product Parameters:

No Item Note
1 Valve type Orifice type directional valve
2 Size DN50
3 height 41cm
4 Temperature usage ℃ -20-120℃
6 weight

61kg
7 structure Optional symmetrical structure
8 others Optional ingredient compartment top breathing function

 Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading 0Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading 1Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading 2Stainless steel line changing valve suitable for dilute phase pneumatic conveying or gravity unloading 3
