45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying

45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying 45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying 45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying 45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying

Large Image :  45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying

Product Details:
Place of Origin: China,Anhui
Brand Name: TECLION
Certification: CC CE
Model Number: DBK100R
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get the Best Price
Packaging Details: Professional export fumigation free wooden crate
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: Usually every one sets for 35- 40 days
Contact Now
Detailed Product Description
Material: Stainless Steel,carbon Steel Temperature: -20℃+120℃
Pressure: 6.0barg Flange Pressure Rating: PN10,ANSI 150lbs
Caliber: DN50-DN300 Drive: Electric Or Manual
Applicable Area: Explosion Proof Area Industry: Chemicals, Minerals, Lithium Batteries, Food, Plastics
Highlight:

Single Channel Ball directional valve

,

45 Degree Ball directional valve

45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying



Product Description:

The ball type series directional valve has better sealing effect and is very suitable for dense phase conveying occasions. The diameter of the directional valve in the picture is DN100, and the contact area between the inner cavity and the material is sprayed with ceramic. Ceramic coatings have characteristics such as high temperature resistance, corrosion resistance, high hardness, and wear resistance.



Product Features:

1) Smooth channel without undulations or dead corners

2) Angle 45 °, three port seal

3) Dense Phase Convey

4) Clear flow indication

5) Drive can be left placed

6) Hard sealing structure



Product Parameters:

No Item Note
1 Valve type Solenoid-actuated Poppet Valve
2 Size DN50-DN300
3 pressure 6.0barg
4 Temperature usage ℃ -20-120℃
5 Material Stainless steel    carbon steel
6 Angle 45° 90° 60°
7 Configuration single channel
8 Electrical Components Optional



Product Pictures:

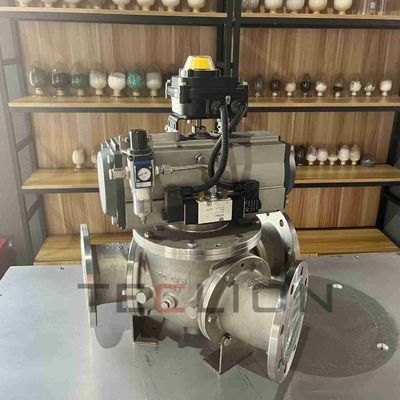

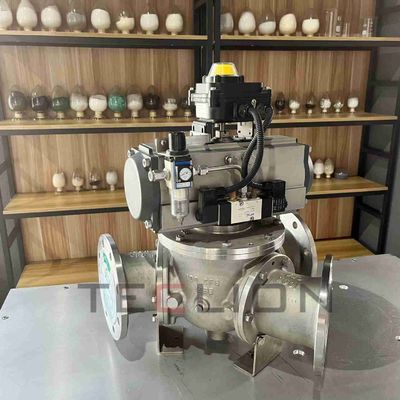

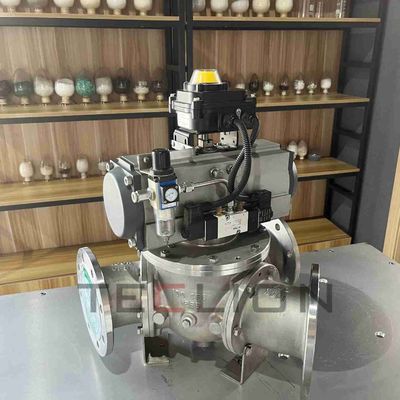

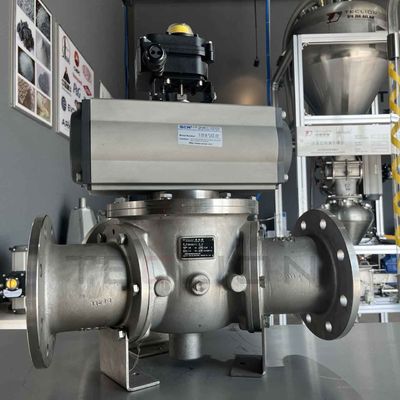

45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying 045 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying 145 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying 245 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying 3
