Stainless Steel Knife Pneumatic Gate Valve Clamp Type for Powder Particle Material

Large Image : Stainless Steel Knife Pneumatic Gate Valve Clamp Type for Powder Particle Material

Product Details:

Place of Origin:	China Anhui
Brand Name:	TECLION
Certification:	CE
Model Number:	GW200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get the Best Price
Packaging Details:	Professional export fumigation free wooden crate
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	Usually every ten sets for 40 days

Contact Now

Detailed Product Description

Valve Type:	Knife Gate Valve	Usage:	Powder And Granular
Structure:	Wafer Type	Pressure:	Less Than 1.5barg
Seal:	Soft	Material:	304ss
Driving:	Cylinder Or Manunal Or Motor	Flange:	PN10,PN16,PN20
Highlight:	Stainless Steel Pneumatic Gate Valve , Clamp Type Pneumatic Gate Valve , Powder pneumatic knife gate valve

Stainless steel clamp type powder particle material knife gate valve

Product Description:

This is a knife gate valve specifically designed to block solid powder and granular materials, commonly used in pneumatic conveying systems, usually installed at the bottom of the silo. This knife gate valve adopts a clamp type structural design, which is easy to install. The sealing structure is designed as a soft seal, containing four types of packing seals, with extremely high sealing performance. The good sealing design also correspondingly extends the service life of the knife gate valve.

Product Features:

1) Wafer structure design

2) Sheet matal protection

3) Pneumatic driving or manual

4) 304ss Material

5) Multiple combinations of fillers

6) Easy to change combined seal

Product Parameters:

No	Item	Note
1	Valve type	Knife gate valve
2	Size	DN200
3	Structure	Wafer
4	Temperature usage ℃	-20~120
5	Material	Mild steel and 304SS
6	Inlet and Outlet	Round and square
7	Sealing	Four kinds of filling
8	Driving	Cylinder and Manual

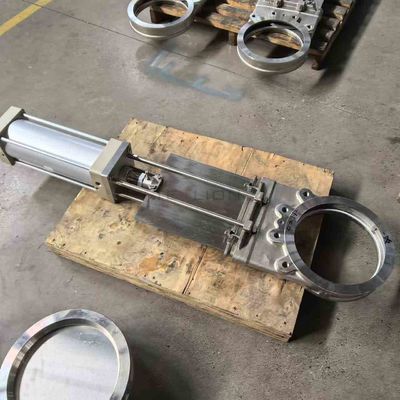

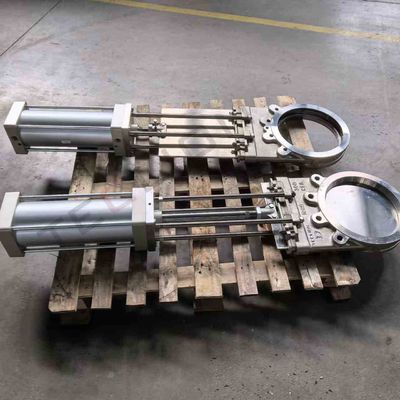

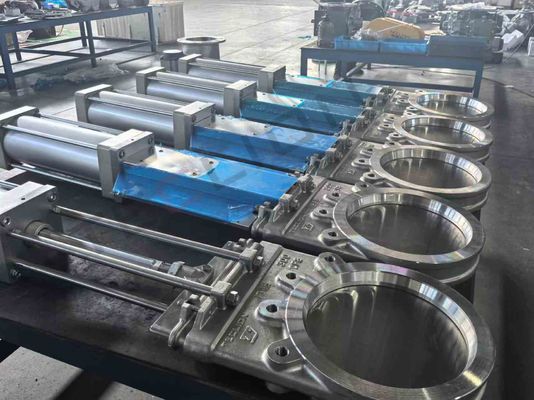

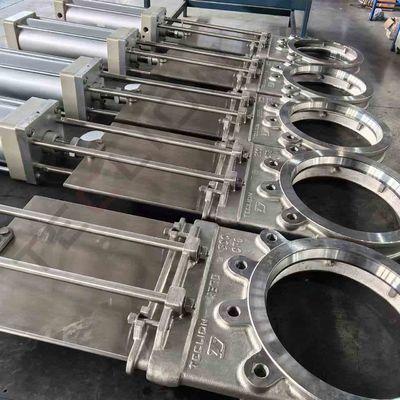

Product Pictures:
