Swing flap plate gravity feeding stainless steel diverter valve

Large Image : Swing flap plate gravity feeding stainless steel diverter valve

Product Details:

Place of Origin:	China Anhui
Brand Name:	TECLION
Certification:	CE
Model Number:	DFY200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get the Best Price
Packaging Details:	Professional export fumigation free wooden crate
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	Usually every ten sets for 40 days

Contact Now

Detailed Product Description

Material:	304ss	Driving:	Cylinder
Size:	DN200	Valve Core:	Flap Plate
Pressure:	Normal Pressure	Angle:	60°，45°，30° Is Optional
Swithch:	With Material	Certification:	CE
Highlight:	Swing flap plate Diverter Valve , Gravity Feeding Diverter Valve , Swing flap plate gravity feeding

Swing flap plate gravity feeding stainless steel diverter valve

Product Description:

A diverter valve is used for conveying powder or granular materials under gravity dropping conditions. The valve adopts a swinging plate structure design, which can switch with materials and be maintained online. The angle of the discharge port can be selected from 60 degrees, 45 degrees, or 30 degrees. The image is at 30 degrees. Standard flange connection, or quick release clamp connection can be used. Multiple sealing strips are used to seal the inner cavity of the valve body, providing excellent sealing performance.

Product Features:

1) Gravity feeding

2) Flap type

3) Pneumatic driving or manual

4) 304ss Material

5) Flange connection or clamp

6) Allow with material operation

Product Parameters:

No	Item	Note
1	Valve type	Diverter valve
2	Size	DN200
3	Work condition	Gravity feeding
4	Temperature usage ℃	-20~120
5	Material	Mild steel and 304SS
6	Angle	30,45,60 degrees
7	Configuration	Spray tuns
8	Electrical Components	Opional

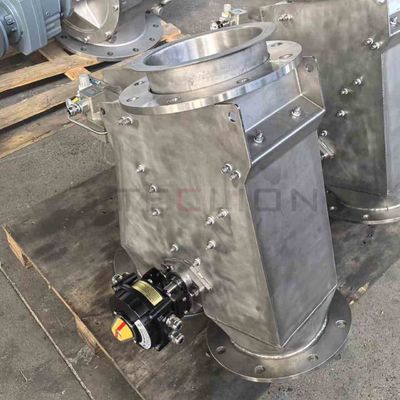

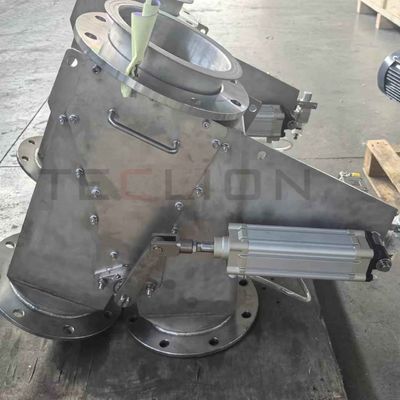

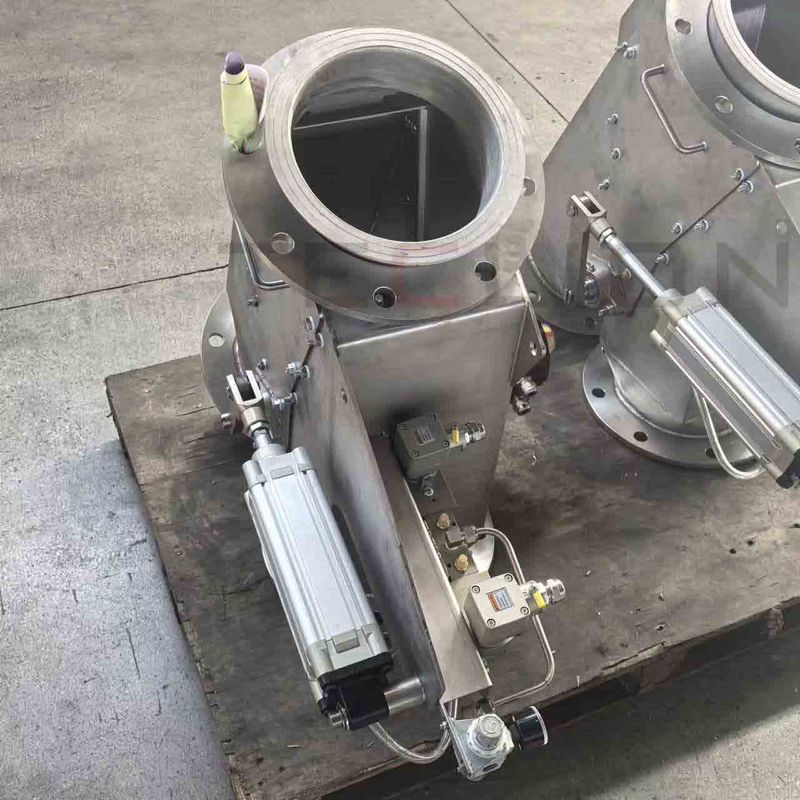

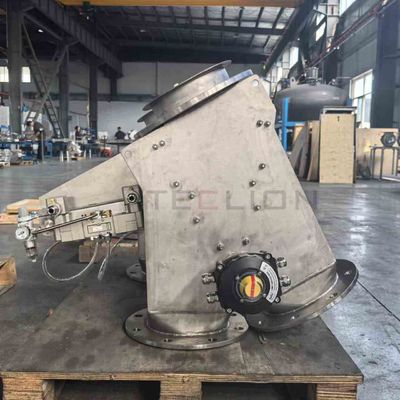

Product Pictures:
