203mm Metering Rotary Feeder Valve For Conveying Powder

Large Image : 203mm Metering Rotary Feeder Valve For Conveying Powder

Product Details:

Place of Origin:	China Anhui
Brand Name:	TECLION
Certification:	CE
Model Number:	RDP80

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get the Best Price
Packaging Details:	Professional export fumigation free wooden crate
Delivery Time:	25 working days
Payment Terms:	T/T
Supply Ability:	Usually every one sets for 30 days

Contact Now

Detailed Product Description

Classification:	Rotary Feeder	Valve Height:	203mm
Valve Weight:	15kg	Connection:	Flange Or Clamp
Motor:	Optional	Reducer:	Optional
Filter Regulator:	SMC Or AIRTAC	Certificate:	EAC
Highlight:	Metering rotary feeder , 203mm rotary feeder , Conveying Powder rotary metering valve

Stainless Steel Rotary Feeder For Measuring And Conveying Powder

Product Description:

This rotary feeder is specifically designed for conveying powder materials and is suitable for working conditions such as the food or pharmaceutical industry that require high hygiene levels. Has a certain degree of metrological function. The standard version of this valve is suitable for a pressure difference not exceeding 1.0 barg and a temperature not exceeding 120 degrees Celsius. Can be used in explosion-proof areas.

Product Features:

1)Connection:Clamp or Flange PN6

2)Internal and external mirror polishing

3)Sanitary grade stainless steel casting

4)Optional to spray ceramic or Teflon

5)With ATEX certification

6)Can provided CE and EAC certification

Product Parameters:

No	Item	Note
1	Valve type	Rotary feeder
2	Size	Inlet and Outlet DN80
3	Height	203 mm
4	Weight	15kg
5	Flange	PN 6 or Clamp flange
6	Rotor volume	0.25L
7	Configuration	optional scraper blade
8	Motor and Reducer	Opional

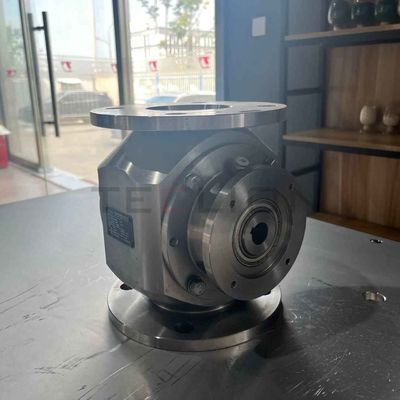

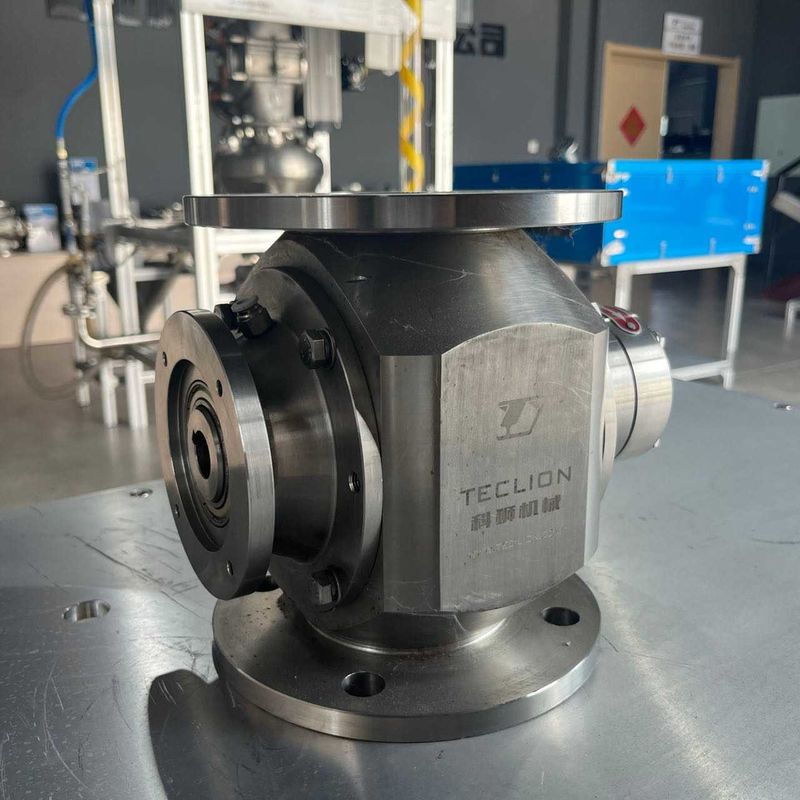

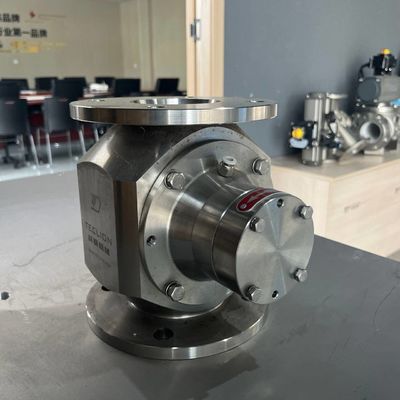

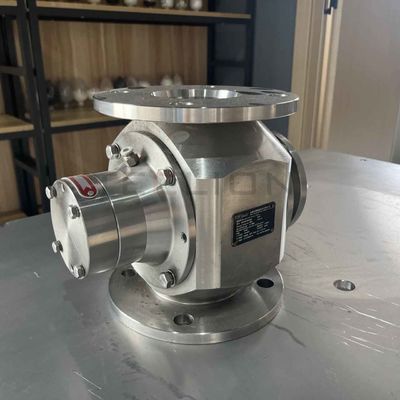

Product Pictures:
