Single channel ball 304ss diverter valve for conveying powder or particle

Single channel ball diverter valve for conveying powder or particles

Product Description:

Stainless steel cast ball directional valve, precision cast valve body shell, smooth and undulating material channel, selected the optimal valve body structure after tens of thousands of action tests, meets high load operation, has sufficient rigidity, and can be used at any position of dense phase conveying pipelines. Currently, the angle can be selected as 45 degrees and 90 degrees. The inner cavity of the valve body can be sprayed with ceramic or tungsten carbide, and the parts in contact with the material can be mirror polished and degreased.

Features:

1) Compact valve body design

2) Clear indication of material flow direction

3) Capable of withstanding pressure up to 6 barg

4) Tens of thousands of motion tests, with excellent quality

5) Drive options include electric, pneumatic, and manual

Product parameters:

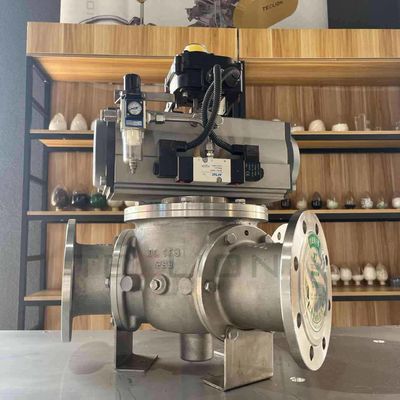

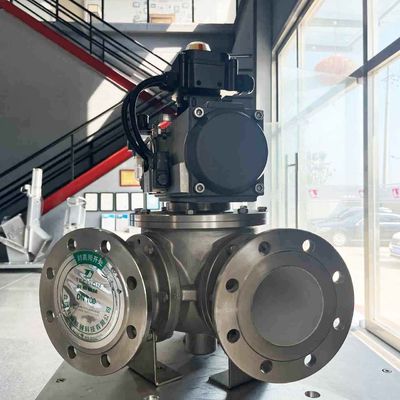

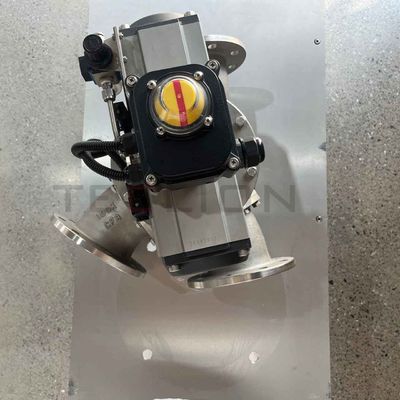

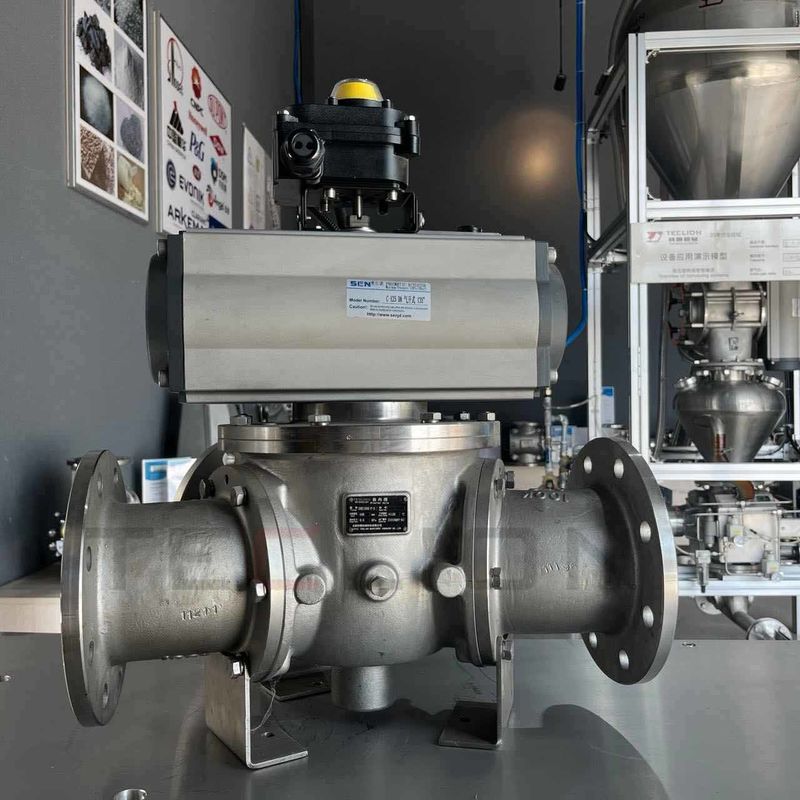

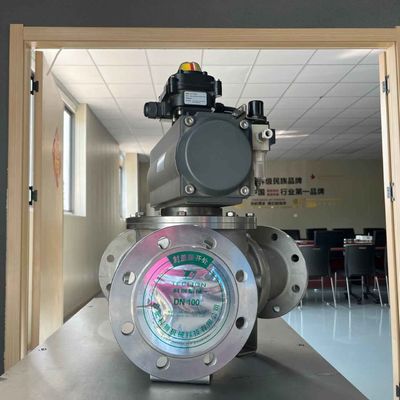

Product Pictures:
