Ball Type 3 Way Gravity Pneumatic Diverter Valve For Conveying Powder And Granular

Large Image : Ball Type 3 Way Gravity Pneumatic Diverter Valve For Conveying Powder And Granular

Product Details:

Place of Origin:	China
Brand Name:	TECLION
Certification:	CE
Model Number:	DBK125

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get the Best Price
Packaging Details:	Professional export fumigation free wooden crate
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	Usually every ten sets for 40 days

Contact Now

Detailed Product Description

Valve Material:	304 Stainless Steel	Pressure:	6 Barg
Flange Standard:	PN10	Valve Core:	Ball Type
Temperature:	-20℃ To +120℃	Usage:	Usable In Ex-zone
Drive:	Cylinder	Color:	Original Color
Highlight:	Ball Type pneumatic diverter valve , Conveying Powder pneumatic diverter valve , Granular 3 way gravity diverter valve

Three Way Ball Type Diverter Valve For Conveying Powder And Granular

Product Description

The three-way diverter ball valve is mainly used for conveying solid materials such as particles or powders, and can be used at any position of the dense phase conveying pipeline in pneumatic conveying, with a maximum pressure difference of 6 barg.Our ball type diverter valve has smooth channels without dead corners and three-way sealing, solving the problem of powder leakage and jamming during customer material transportation.

Features

(1) Suitable for switching and conveying powder or granular materials.

(2) The material contact surface can achieve mirror polishing.

(3) Equipped with clear flow direction indicators.

(4) Can meet customers' various material requirements, such as stainless steel, carbon steel, etc

Technical parameter

Product Name	Three way diverter valve
Valve Material	Carbon steel Or Stainless steel (304, 316, etc.) Optional
Pressure difference	6 barg
Suitable temperature	From minus 20 degrees to 120 degrees
Angle	45 degrees or 90 degrees

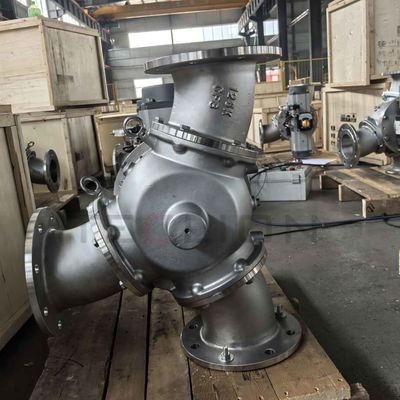

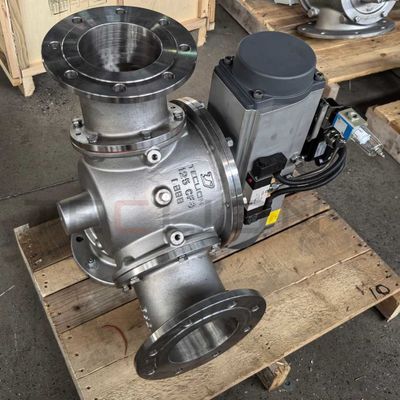

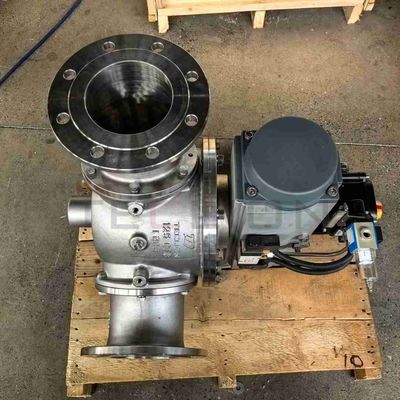

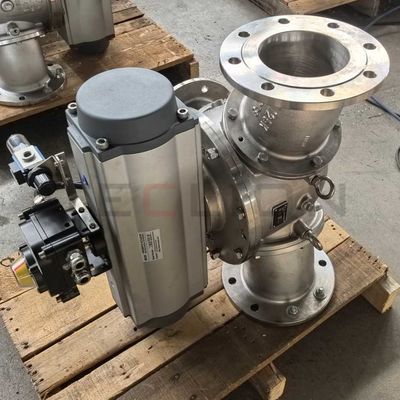

Delivery pictures

Ball Type 3 Way Gravity Pneumatic Diverter Valve For Conveying Powder And Granular 0
