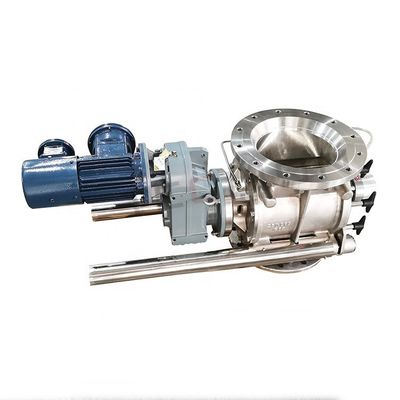

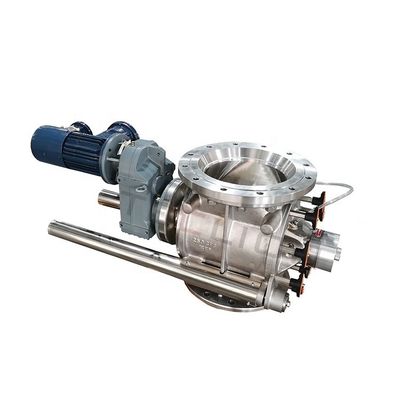

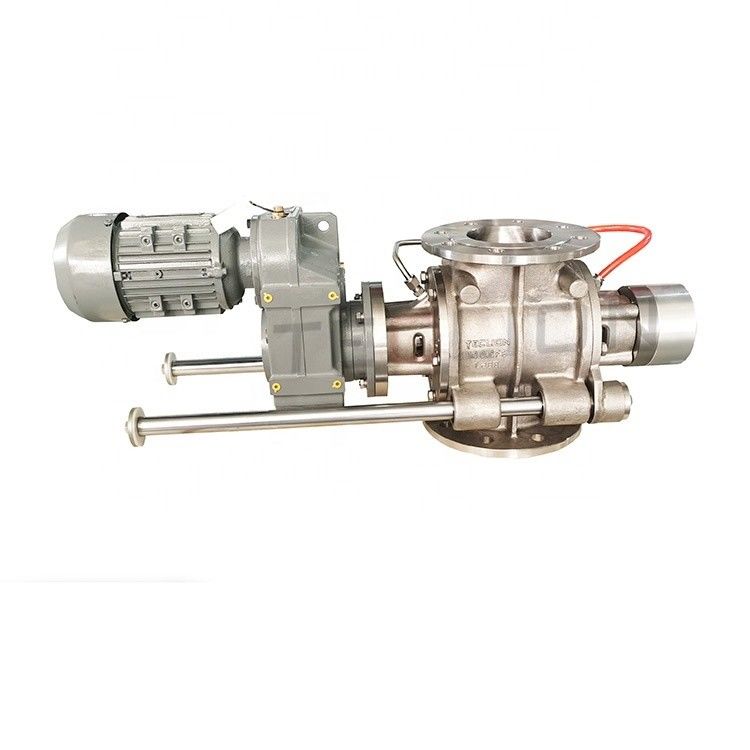

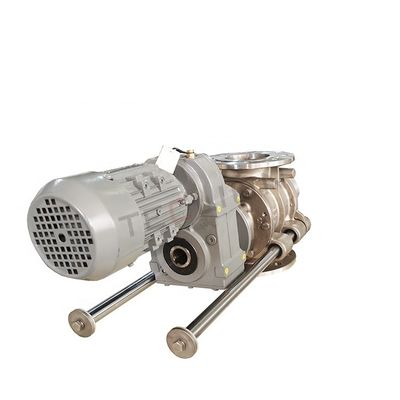

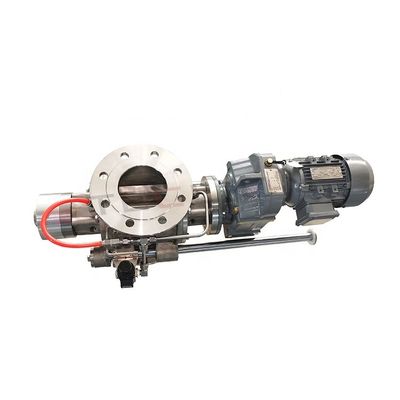

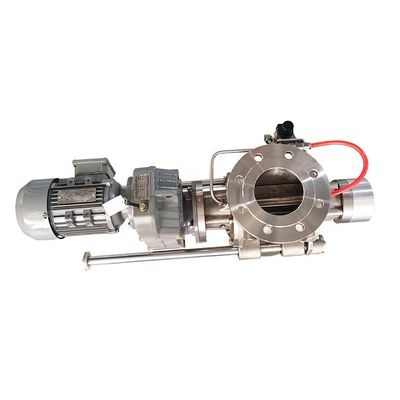

Safety Metering Dust Collector Rotary Valve Feeder DN100-DN350 ODM

Large Image : Safety Metering Dust Collector Rotary Valve Feeder DN100-DN350 ODM

Product Details:

Place of Origin:	Anhui, China
Brand Name:	TecLion
Model Number:	RDC

Payment & Shipping Terms:

Price:	$2,232.00 - $17,352.00/sets
Packaging Details:	Wooden box
Supply Ability:	50 Set/Sets per Quarter

Contact Now

Detailed Product Description

Application:	General	Port Size:	DN100---DN350
Power:	Electric	Temperature Of Media:	Low Temperature, Medium Temperature
Structure:	Safety	Customized Support:	OEM, ODM, OBM
Highlight:	DN350 dust collector rotary valve , ODM dust collector rotary valve , rotary metering valve Feeder

Safety Structure Quick Clean Rotary Valve Feeder with ODM Support and Customized

Product Overview

Rotary valve for quick cleaning of powder medium discharge and metering

This rotary feeder has a specialized quick release design, suitable for production requirements that require regular cleaning of valve bodies. It is generally used in the food and pharmaceutical industries and is suitable for pneumatic conveying conditions.

FEATURES AT A GLANCE

Quick cleaning
Large inlet for high capacities
For feeding pneumatic conveying system
Suitable for differential pressure up to 1.5 bar
Temperature range:up to 250°C
Materials of constructions:stainless steel
Flange drillings available to PN10,ANSI150lbs
Usable in EX-zone

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Warranty	1 year
2	Customiazed Support	OEM,ODM,OBM
3	Place of Origin	China
4	Brand Name	Teclion
5	Model Number	RDC
6	Application	Pneumatic conveying system
7	Temperature of Media	Low temperature Medium temperature
8	Media	powder
	Port Size	DN100-DN350
