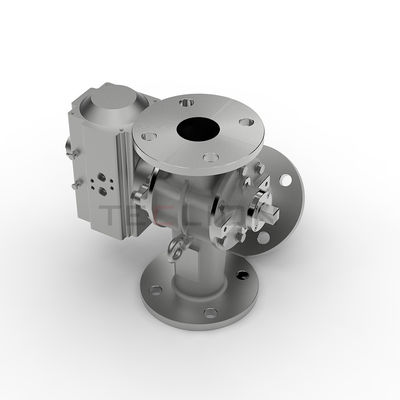

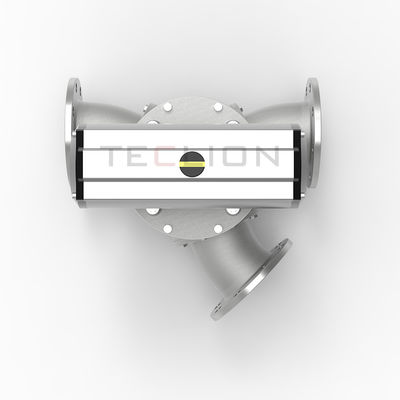

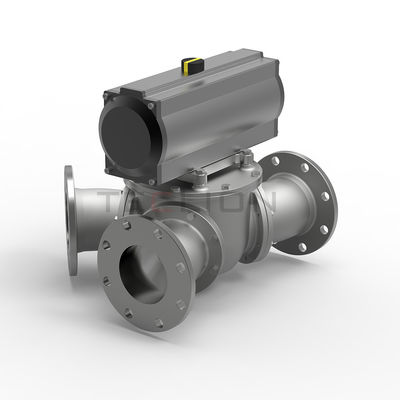

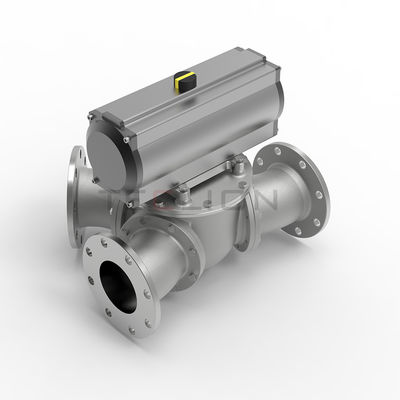

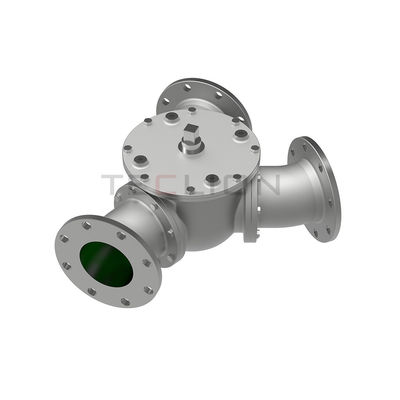

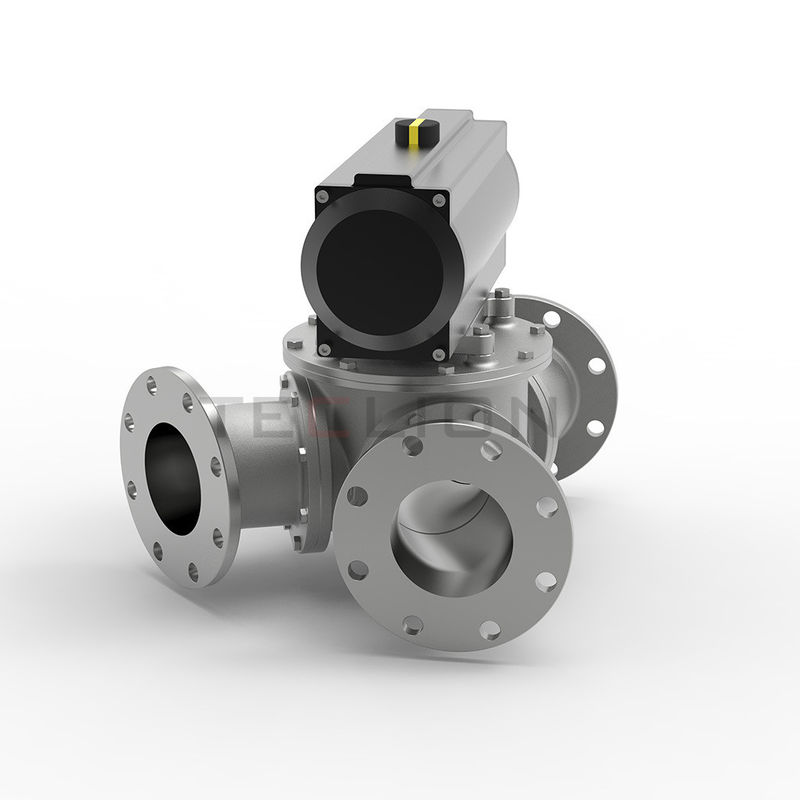

DBK Vacuum Diverter Valve Gate For Pneumatic Transmission Pipeline

Large Image : DBK Vacuum Diverter Valve Gate For Pneumatic Transmission Pipeline

Product Details:

Place of Origin:	Anhui, China
Brand Name:	TECLION
Model Number:	DBK diverter valve

Payment & Shipping Terms:

Price:	$3,000.00/sets 1-4 sets
Packaging Details:	wooden box

Contact Now

Detailed Product Description

Application:	Pneumatic Transmission Pipeline And Gravity Discharge Reversing	Port Size:	DN65-DN400
Warranty:	12 Months	Power:	Pneumatic
Temperature Of Media:	Medium Temperature, Normal Temperature	Structure:	BALL
Media:	Powders Or Granular Products	Customized Support:	OEM, ODM, OBM, Software Reengineering
Product Name:	DBK Diverter Valve	Body Material:	SS316/SS304/WCB
Working Pressure:	1.0-1.5barg	Working Temperature:	-20-120
Size:	Customized Size	Type:	REVERSING VALVE
Highlight:	Pipeline vacuum diverter valve , Pneumatic vacuum diverter valve , Pipeline gate diverter

Specification

item	DBK Diverter Valve Solution for Pneumatic Transmission Pipeline and Gravity Discharge
Warranty	12 months
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	China
	Anhui
Brand Name	TECLION
Model Number	DBK diverter valve
Application	Pneumatic transmission pipeline and gravity discharge reversing
Temperature of Media	Medium Temperature, Normal Temperature
Power	Pneumatic
Media	Powders or granular products
Port Size	DN65-DN400
Structure	BALL
Product name	DBK diverter valve
Body material	SS316/SS304/WCB
Working pressure	1.0-1.5barg
Working Temperature	-20-120
Size	Customized Size

Product Description

Q:What is MOQ for this product in your company? A:MOQ is 1 pcs ,if more,please check with us firstly.. Q:What delivery time is in your company for this product? A:Delivery time is 25 days since order in general.If tight,please check us.We will arrange production for you as per mutual benefit benefit. Q:Can you produce this product as per our color code? A:Customized color is welcome with pantone color code.Or customer can send us color sample plate for confirmationl. Q:Can you pack this product with our color card with our brand logo? A:Customized color card is welcome with design in PDF,AI,CDR form. Q:We are one big company,and want to design our special package for this product,is it ok? A:Another customized package is welcome with design as gift box,display box and so on. Q:What shipment is it to our destination? A:In general,we transfer goods by sea for save cost.If you urgent,we can consider by air.
